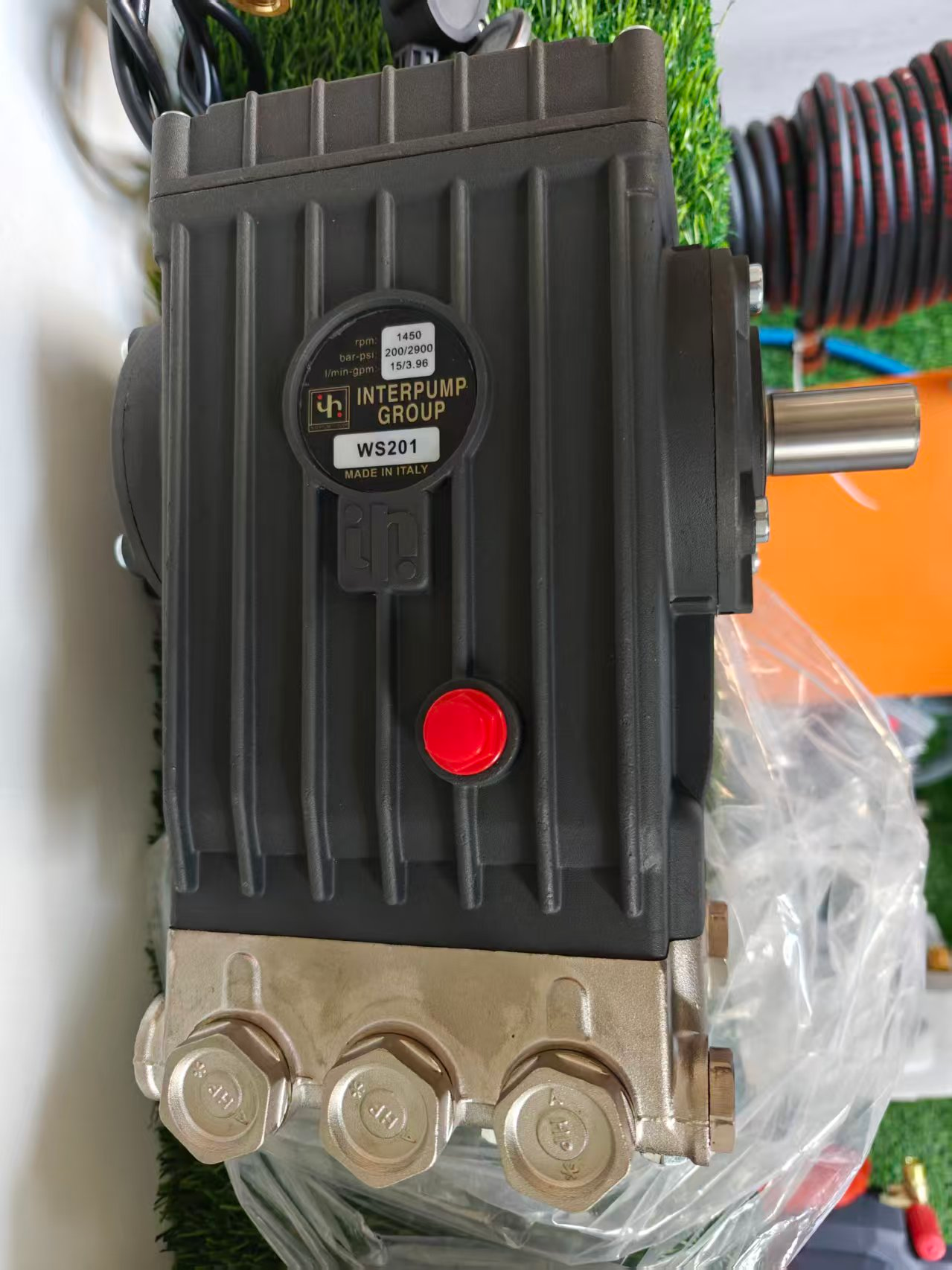

What Affects a High Pressure Pump's Service Life?

Hydraulic Performance & Fluid Compatibility: Cavitation, NPSH, and BEP Deviation in High Pressure Pump Systems

Cavitation Mechanisms and Field Failure Correlations from ISO 15147 Data

When the Net Positive Suction Head Available (NPSHA) drops below what's needed (NPSHR), cavitation kicks in with those pesky vapor bubbles forming and then slamming into impeller surfaces. According to field reports from ISO 15147 standards, we see about a 14% increase in impeller erosion problems whenever these NPSHA margins fall under 0.5 meters. That's why keeping proper suction head is so important for pump longevity. What really does damage are those tiny jets created during bubble collapse that can hit over 10,000 PSI. These forces wear down materials bit by bit until eventually there's noticeable surface fatigue and material loss across the impeller components.

Radial Load Imbalance and Efficiency Loss When Operating ±15% from Best Efficiency Point

Running a high pressure pump outside of ±15% from its Best Efficiency Point creates problems with radial forces and noticeable drops in efficiency. When pumps operate at around 120% of BEP flow rates, the radial bearings take on about 30% more load which speeds up seal wear and damages motor insulation over time. At the same time, according to ASME standards B73.1-2022, hydraulic efficiency plummets somewhere between 8 to 12%. All this extra energy gets converted into heat that breaks down lubricants and makes systems less thermally stable. The result? High frequency vibrations above 4.5 mm/s RMS readings that we see in real world applications, and these vibrations cut bearing life nearly in half compared to normal operations. Keeping pumps running within ±10% of their BEP range offers the best mix of good hydraulic performance, reliable mechanics, and efficient energy usage for most industrial settings.

Design Integrity and Material Selection for High Pressure Pump Durability

Impeller Balance Tolerance (ISO 1940 G2.5) and Its Role in Vibration-Induced Fatigue

When impellers are balanced according to ISO 1940 G2.5 standards, they cut down on vibration levels by around 85% compared to those that aren't properly balanced. This makes a big difference in reducing the kind of fatigue problems caused by constant vibrations in high pressure systems. The thing is, when things spin out of balance, bearings wear out faster, shafts bend under stress, and cracks start forming in parts like volutes and pump casings. Real world testing has found that pumps which meet the G2.5 standard tend to have about 40% fewer issues related to vibration after running for five years straight. These kinds of imbalances lead to several common problems down the road.

• Resonance risk: Amplified structural stress at critical speeds
• Seal degradation: Radial displacement compromising mechanical seal alignment and face loading
• Crack propagation: Cyclic loading initiating stress fractures in high-stress zones

Corrosion Resistance Trade-offs: 316 Stainless Steel vs. Duplex in Aggressive High Pressure Pump Applications

Material selection must align with both fluid chemistry and pressure demands. While 316 stainless steel provides cost-effective general corrosion resistance, duplex alloys deliver superior performance in chloride-rich or acidic environments common in chemical processing and seawater service.

Refinery case studies confirm pumps handling fluids above 60°C with extreme pH exhibit 70% longer mean-time-between-failures when constructed with duplex materials. Strategic use of 316SS in non-wetted components—such as support frames or mounting hardware—maintains hydraulic integrity while optimizing total cost of ownership.

Preventive Maintenance and Contamination Control to Maximize High Pressure Pump Service Life

Lubricant Cleanliness Standards (ISO 4406 18/16/13) and Their Measured Impact on Bearing Lifespan

Following the ISO 4406 18/16/13 standards for lubricant cleanliness really matters when it comes to how long bearings last in those high pressure pumps we see everywhere. When particles get bigger than 6 microns, they actually speed up wear on thrust bearings somewhere between 30 and 50 percent. If things degrade down to ISO 4406 21/19/16 levels, bearings tend to fail from fatigue about seven times more often because these tiny particles create stress points that nobody wants to deal with. Contaminated oil starts causing problems like pitting over time, makes vibrations worse (anything above 4.5 mm/s RMS is trouble), and leads to leaks around seals plus extra movement beyond the 0.15mm tolerance that specs require. For keeping those hydrodynamic films intact during those intense pressure spikes, multi stage filtration systems work best. Using filter carts rated at beta ratios of 200 or better helps extend how long bearings need replacing in centrifugal pumps from just 12 months all the way out to 36 months, which saves money and downtime for plant operators.

FAQ

What is cavitation in high pressure pump systems?

Cavitation occurs when vapor bubbles form and collapse in a pump system, potentially damaging impeller surfaces and decreasing the pump's lifespan.

Why is it important to maintain proper NPSH in pumps?

Maintaining proper Net Positive Suction Head (NPSH) prevents cavitation and its associated damages, such as erosion and impeller fatigue.

What are the advantages of using duplex alloys in pump applications?

Duplex alloys offer superior performance in chloride-rich or acidic environments, providing longer pitting resistance and reduced deformation under pressure.

How does operating a pump outside its Best Efficiency Point (BEP) affect performance?

Operating outside the BEP results in increased radial forces, energy inefficiencies, and shortened bearing life due to elevated vibrations and thermal stresses.
